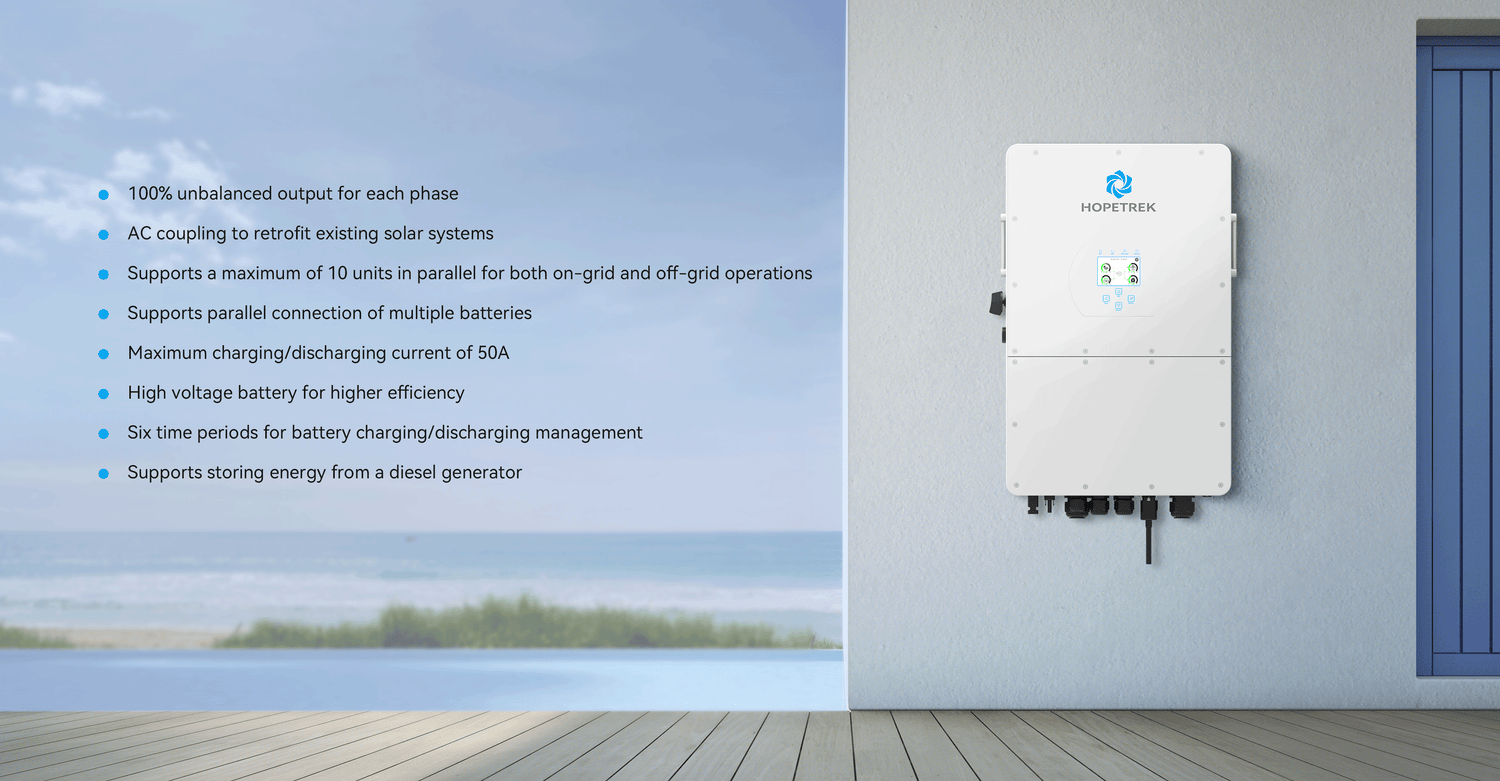

TH-A Series Hybrid Inverter

5-25kW | Three Phase | 2 MPPT | Hybrid Inverter | HV Battery Supported

Offers higher yields, safe and reliable performance, smart and user-friendly operation.

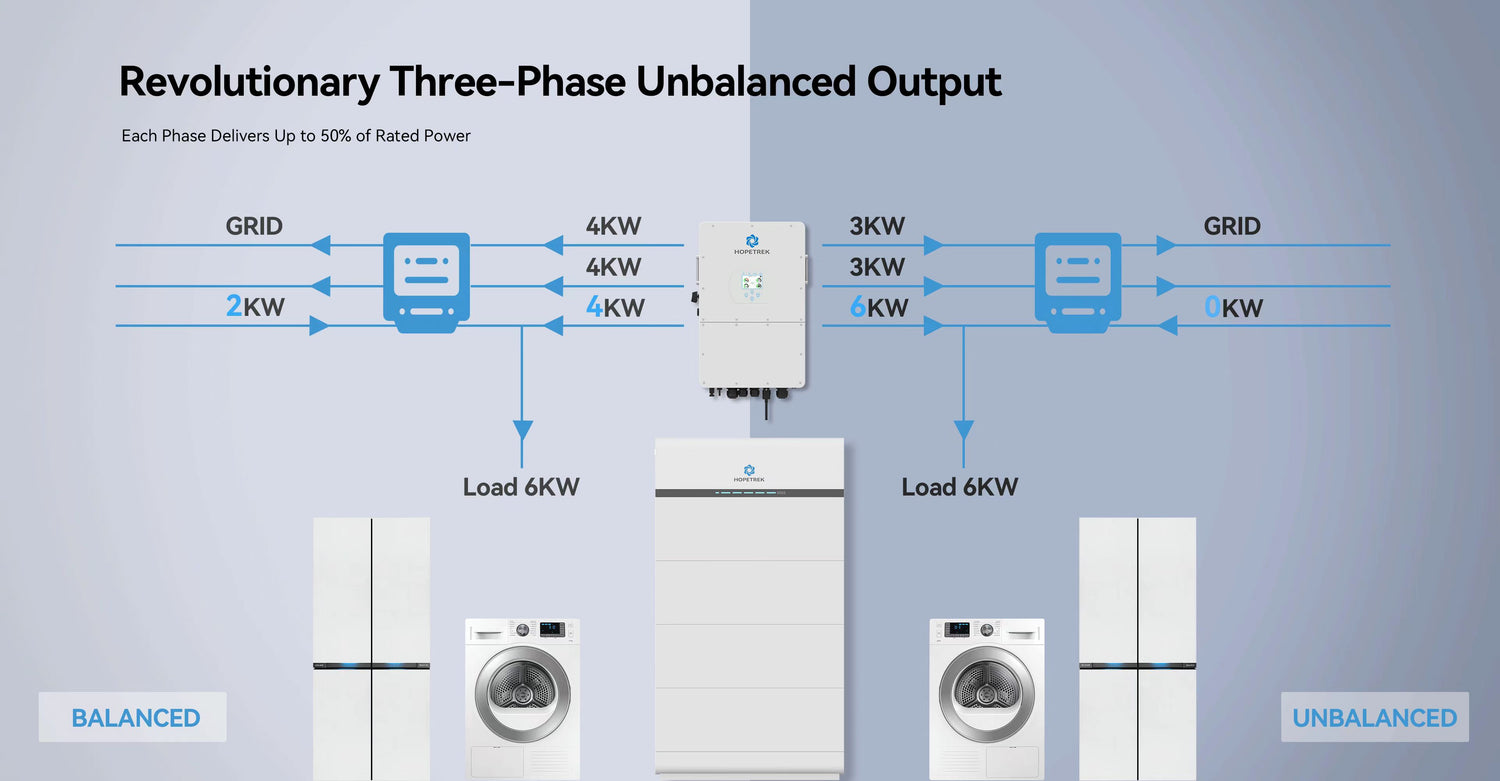

The ESS-TH5/6/8/10/12/15/20/25K is a brand-new series of three-phase hybrid inverters supporting 160-700V HV batteries, ensuring system efficiency and reduced heat dissipation. Featuring a compact design and high power density, this series supports a 1.3 DC/AC ratio, thereby saving on device investment. It also supports three-phase unbalanced output, extending its application scenarios.


Specification Description
No. of MPP trackers/Strings per MPP tracker 2(1/1)
Max. PV Input Current(PV1/PV2) 20A/20A
Battery voltage range 160V~700V
Max. charge/discharge current 37A/37A
Dimensions (W*H*D) 408*638*237mm
Net weight 31kg
