LB16-W01 Series

16kWh | 314Ah LiFePO₄ Cell | 8000+ Cycles

Precision-engineered for residential energy storage, the LB16-W01 Series delivers 16kWh of dependable power in a refined, mobility-optimized form factor.

Built with high-capacity 314Ah LiFePO₄ cells, it achieves over 8,000 cycles of long-life performance with inherent thermal stability and safety.

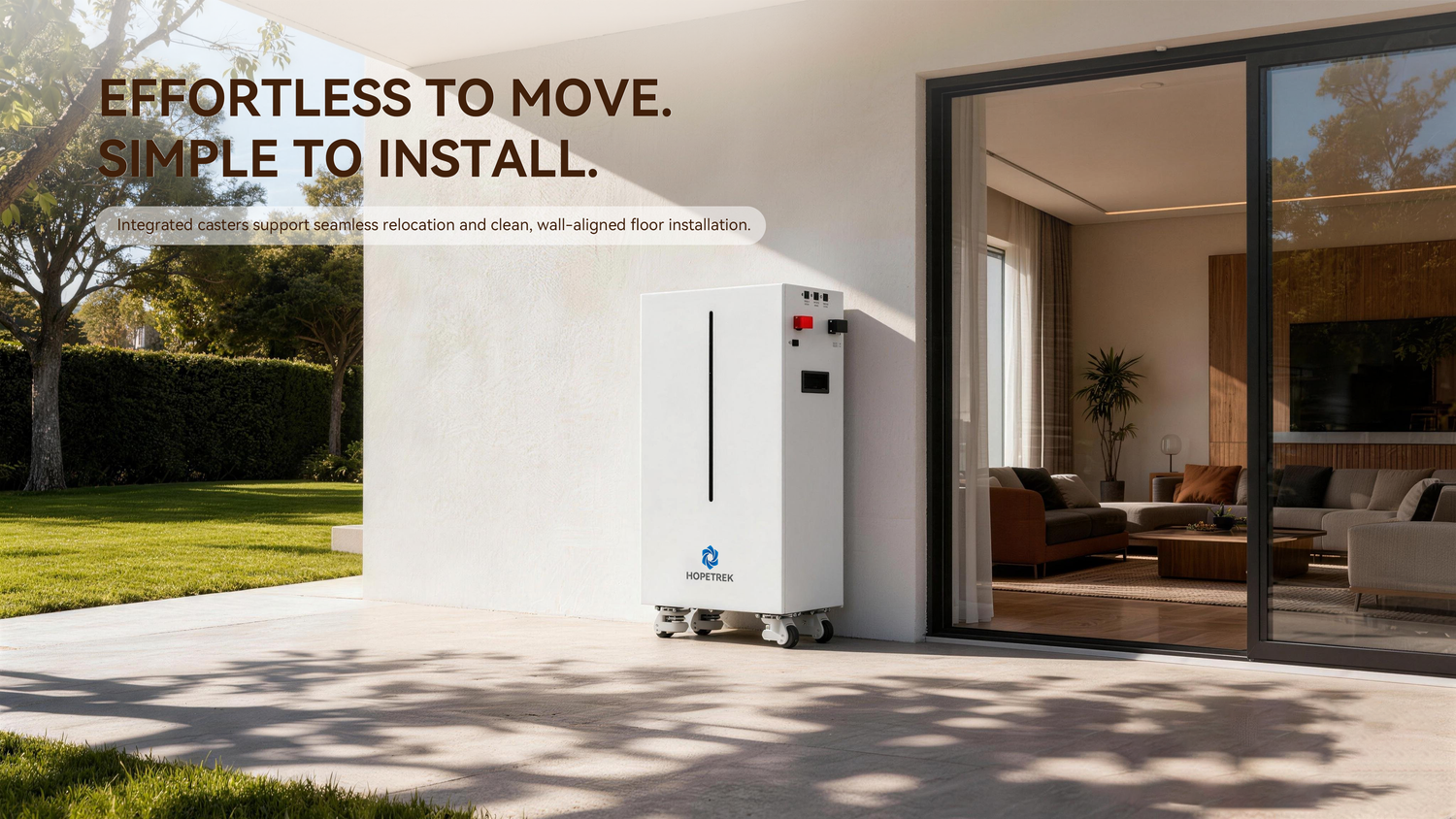

Integrated casters enable smooth positioning and system reconfiguration without structural constraints.

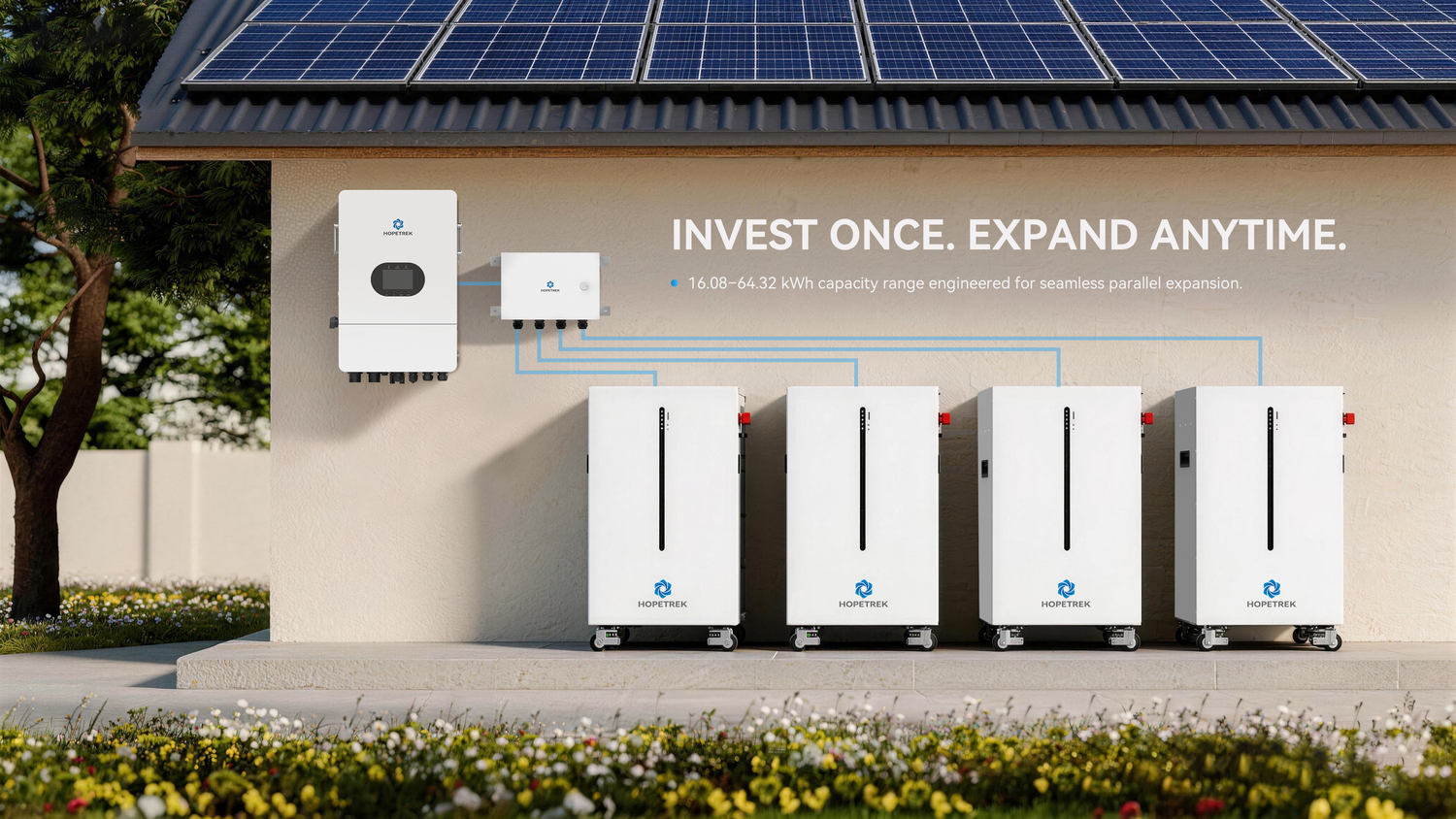

Designed for scalability, up to four units can be connected in parallel, expanding total capacity from 16kWh to 64kWh with seamless system integration.

SPEC

Battery Unit Model ESS-LB16-W01
Cell Type LFP(LiFePO4)--314Ah
Rated Energy 16.08kWh
Max Charge/Discharge Current 200A/200A
Cycle Life ≥8000(25±2℃, 0.5C/0.5C, 70%EOL)
Battery Unit Dimensions 480*250*800mm
Battery Unit Weight 112kg
Certificates UN38.3, MSDS
Ingress Protection IP20

DOWNLOAD

Datasheet
Certificates
Manual & Quick Guide
【Datasheet】ESS-LB16-W01 Battery System 20251223-EN
【User Manual】ESS-LB16-W01 Low Voltage Battery System V1.01-EN
