LB5-W01 Series

Power, Redefined for Home.

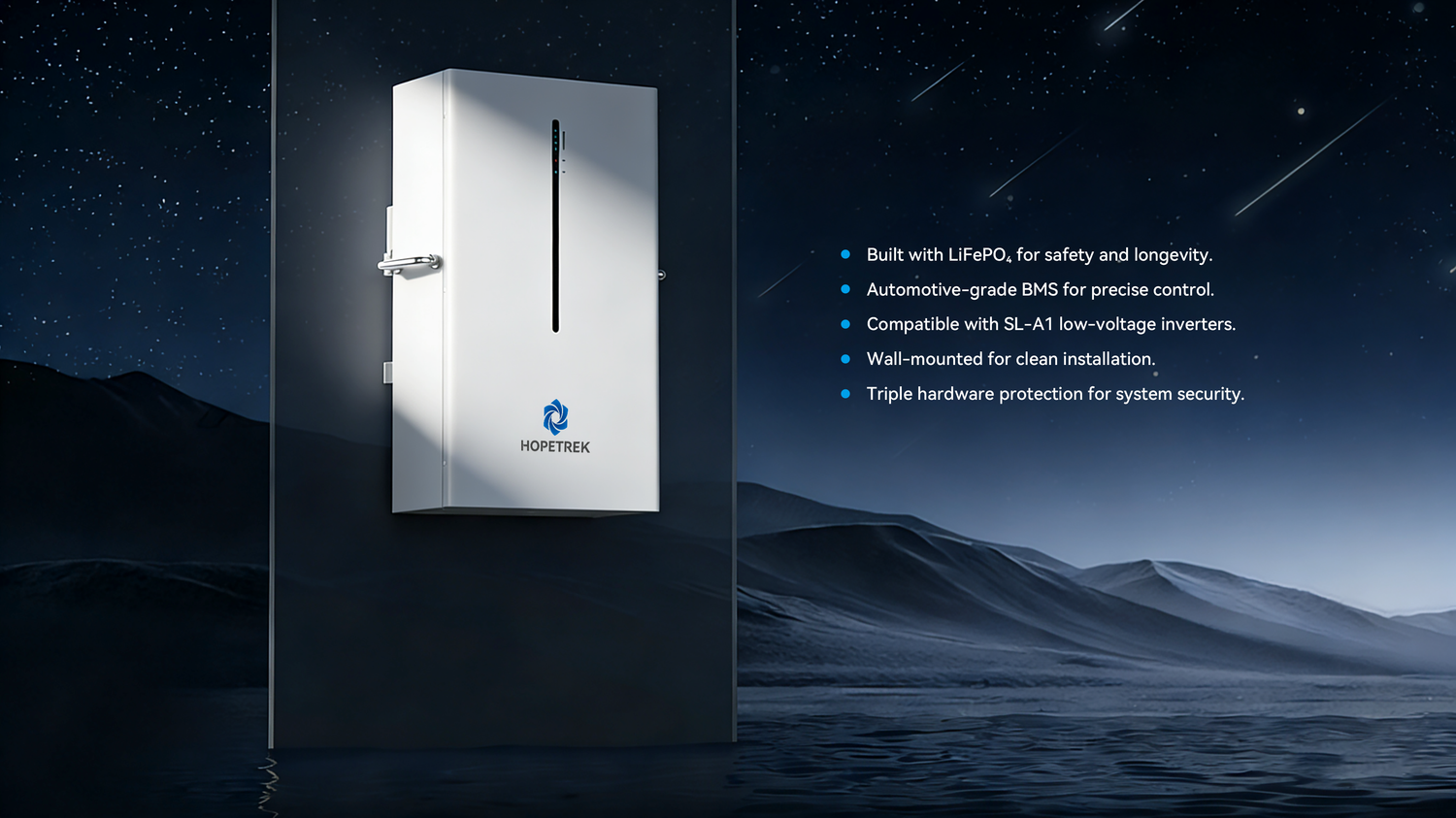

The LB5-W01 Series is a refined home energy storage system designed to deliver clean, stable power with uncompromising reliability. Engineered with advanced LiFePO₄ technology, it provides long-lasting performance and enhanced safety for modern households.

Each module offers 5.12 kWh of dependable energy, with a lifecycle exceeding 6,000 cycles — built to power your home for years to come.

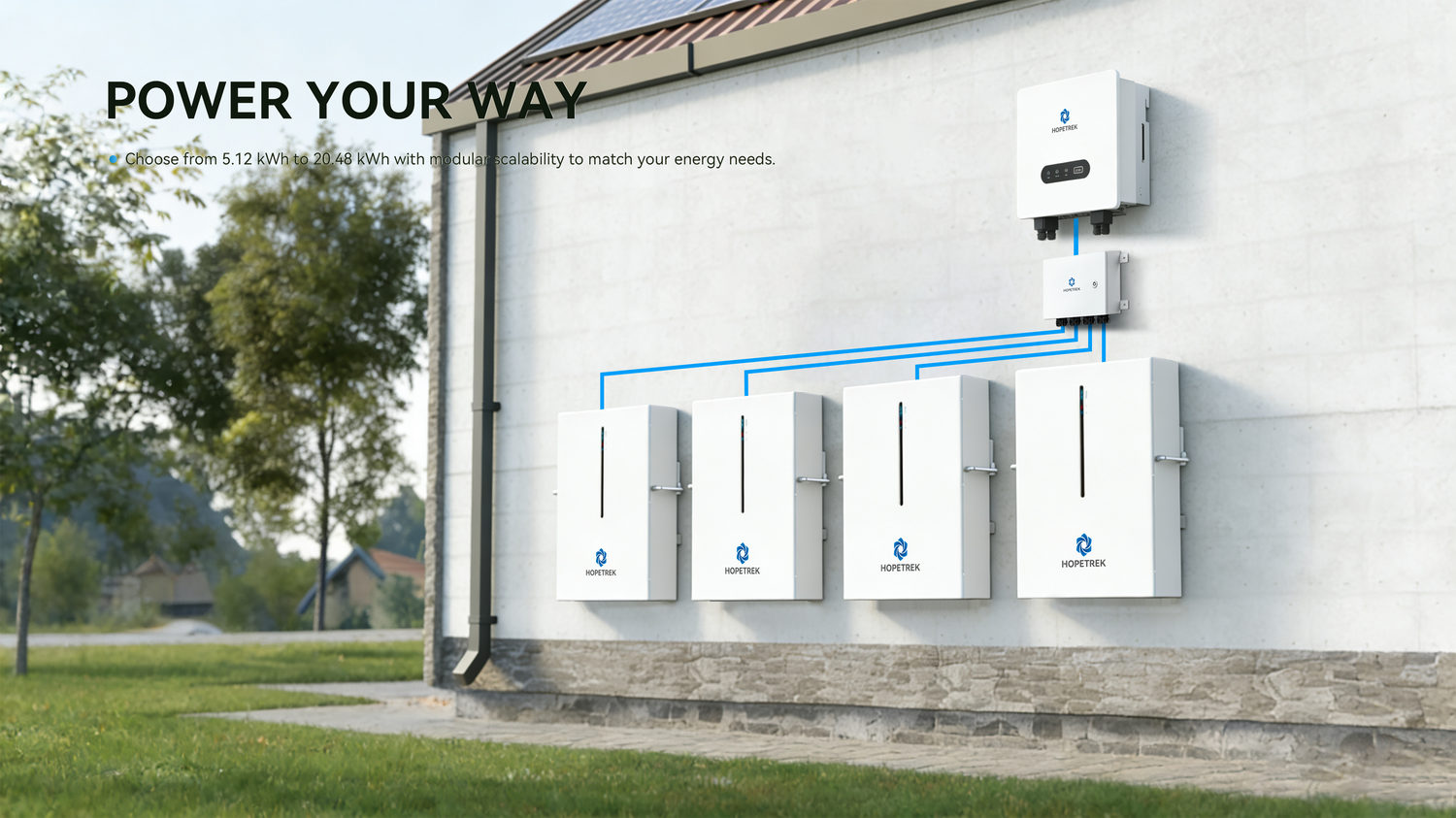

Its streamlined wall-mounted design blends effortlessly into residential spaces, while modular expandability allows up to 20 kWh of scalable storage capacity. As your energy needs grow, your system grows with you.

Intelligent. Scalable. Built for the future of home energy.

SPEC

Battery Unit Model ESS-LB5-W01
Cell Type LFP(LiFePO4)--100Ah
Rated Energy 5.12kWh
Max Charge/Discharge Current 50A/50A
Cycle Life ≥6000(25±2℃, 0.5C/0.5C, 70%EOL)

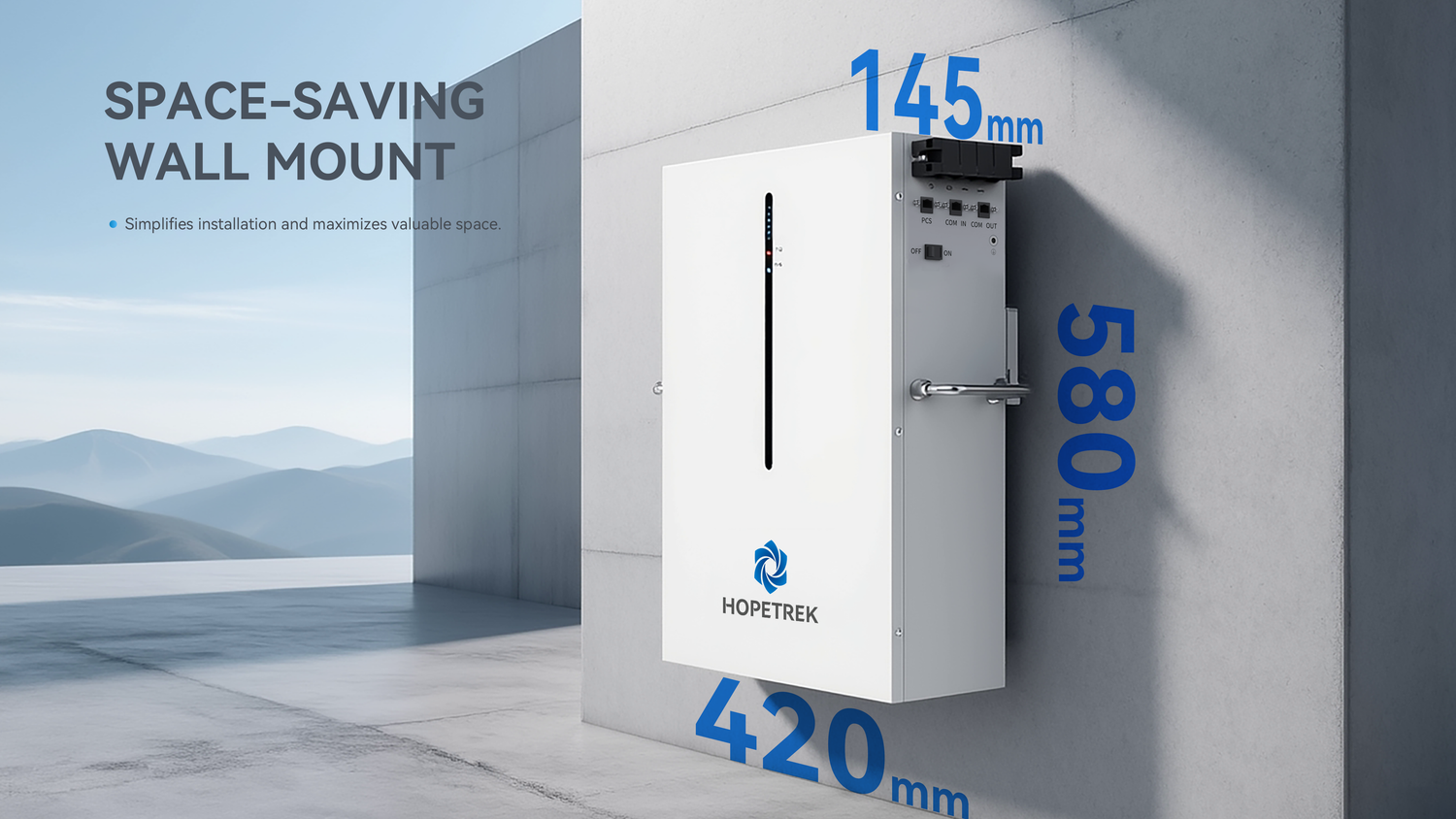

Battery Unit Dimensions 420*145*589mm
Battery Unit Weight 45kg
Ingress Protection IP20
