TL-A1 Series 5-12kW
5-12kW | Three Phase | 2 MPPT | Hybrid Inverter | Compatible with LV Batteries

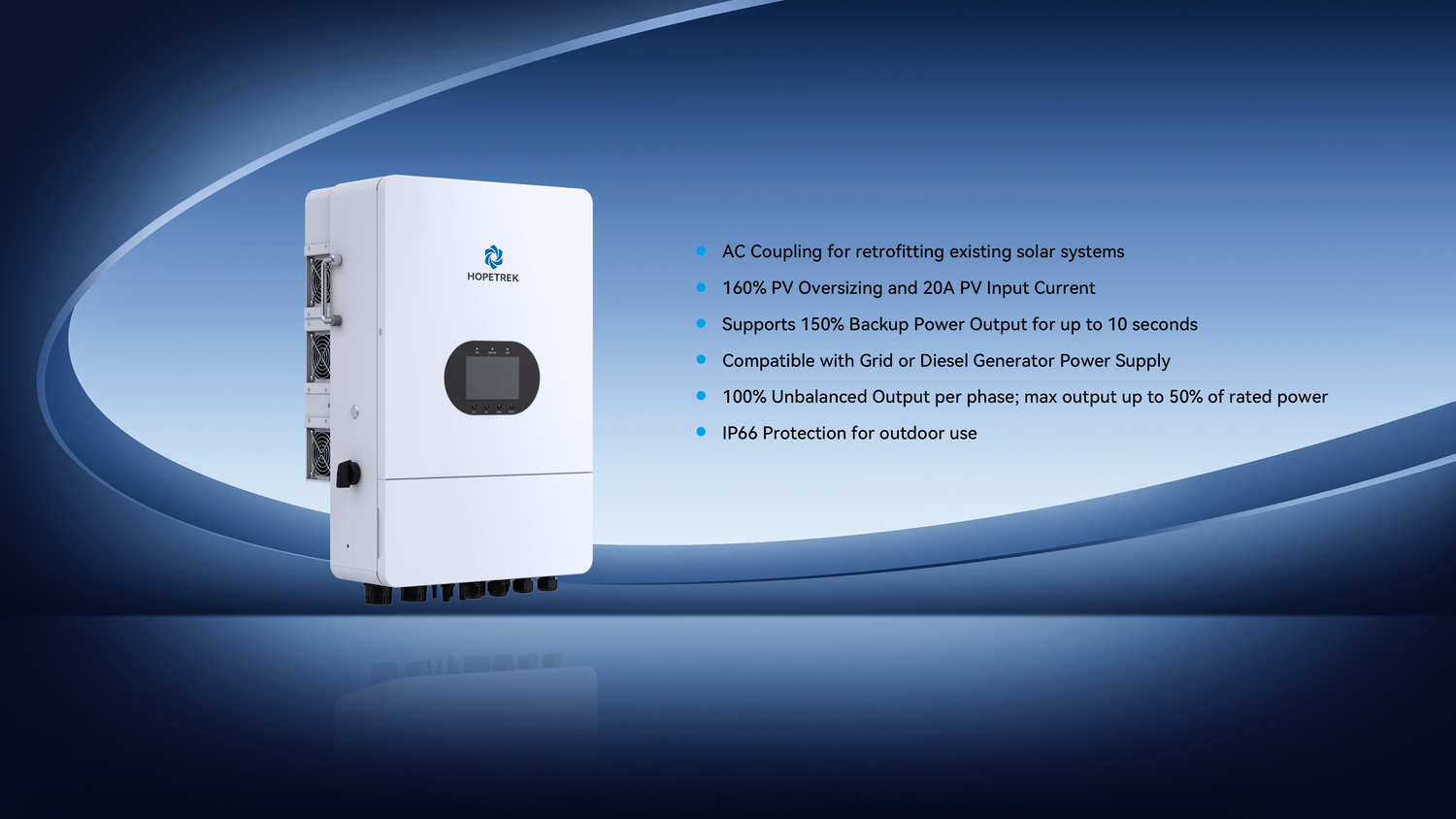

The SUN-TL-HP5K/6K/8K/10K/12K-A1 Hybrid Inverter delivers high energy yields, reliability, and smart, user-friendly operation. Perfect for residential and light commercial applications, it seamlessly integrates solar generation, battery storage, and backup power.
Supporting up to 1.6x PV oversizing, it optimizes solar energy production and offers flexible modes to suit various power needs and reduce electricity costs.
Designed for efficiency, long-term reliability, and cost-effective energy management.
TL-A1 Series 5-12kW
$0.00
SPEC
| Specification | SUN-TL-HP5/6/8K-A1 | SUN-TL-HP10/12K-A1 |
| No. of MPP trackers/Strings per MPP tracker | 2(1/1) | 2(2+1) |
| Max. input current (input 1/input 2) | 20A/20A | 40A/20A |
| Battery voltage range | 40V~60V | 40V~60V |
| Max. charge/discharge current | 100A/120A/160A | 200A/240A |
| Dimensions (W*H*D) | 480*300*660 mm | 480*300*660 mm |
| Net weight | 42kg | 42kg |
DOWNLOAD
Datasheet
Certificates
Manual & Quick Guide
