LB5-R01 Series Low-Voltage Battery
5-20kWh | Low-Voltage Battery | 100Ah Cell | 6000+ Cycles
Safe & Reliable / Smart and Flexible / Easy Installation / User-Friendly

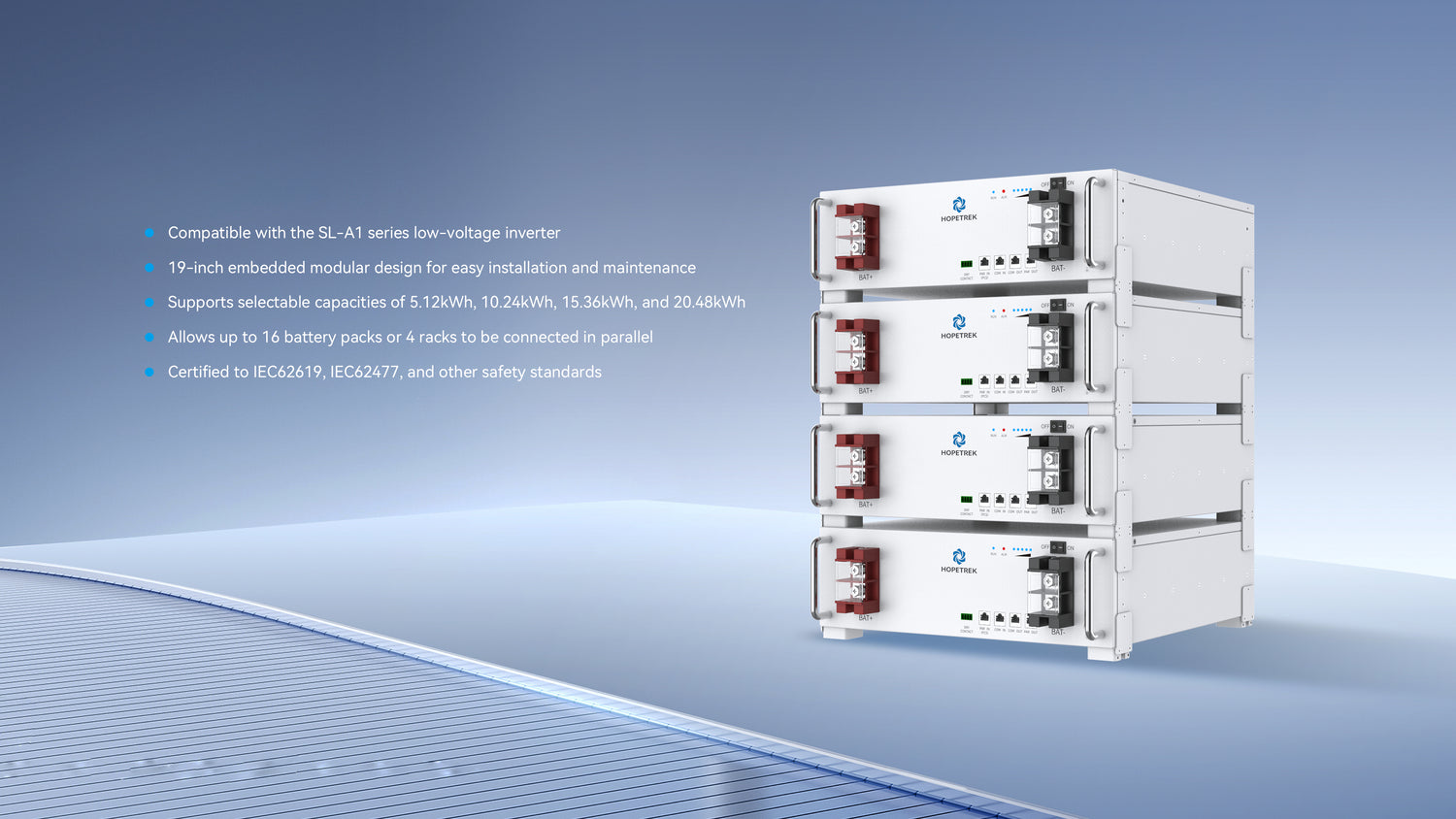

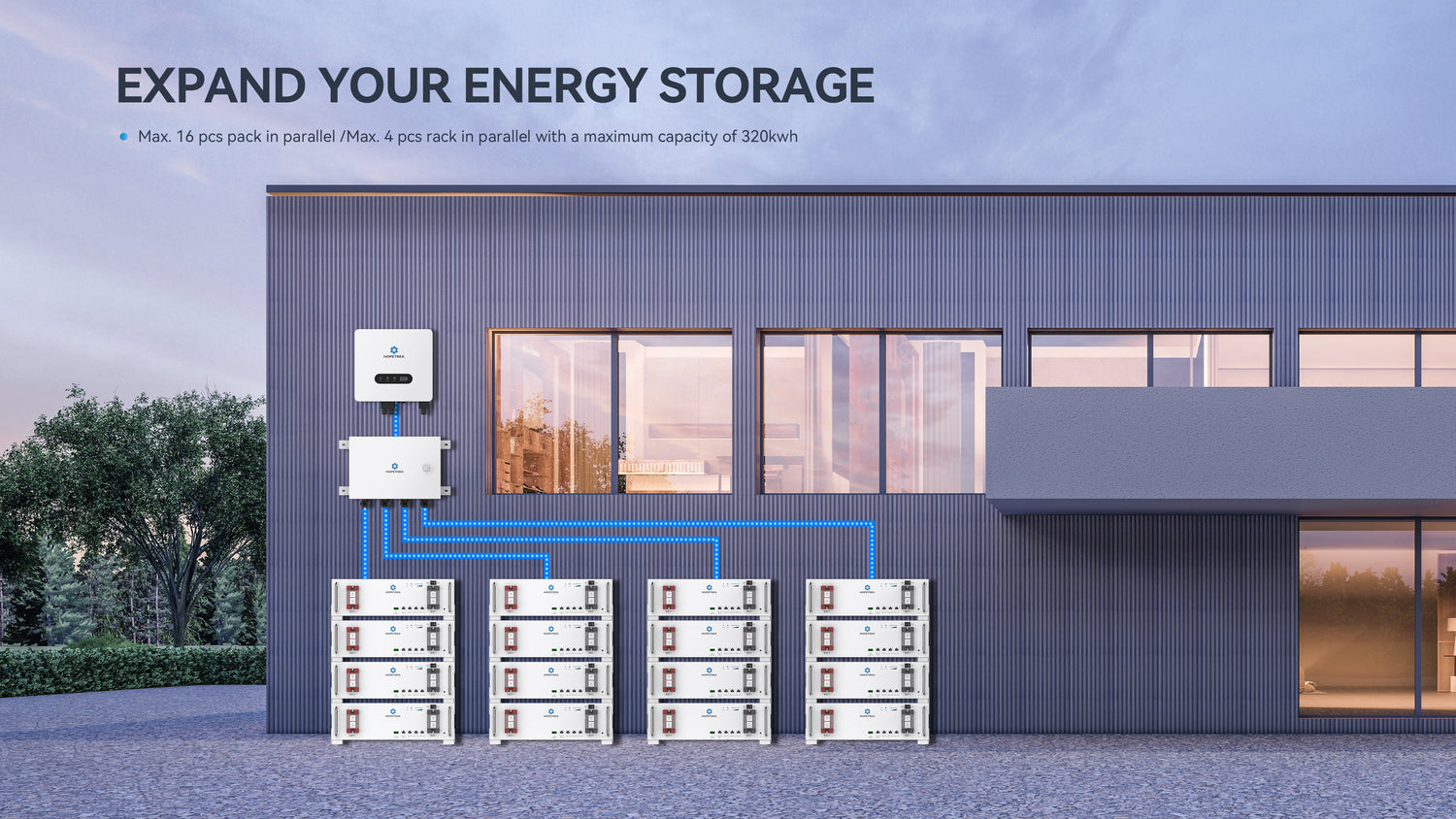

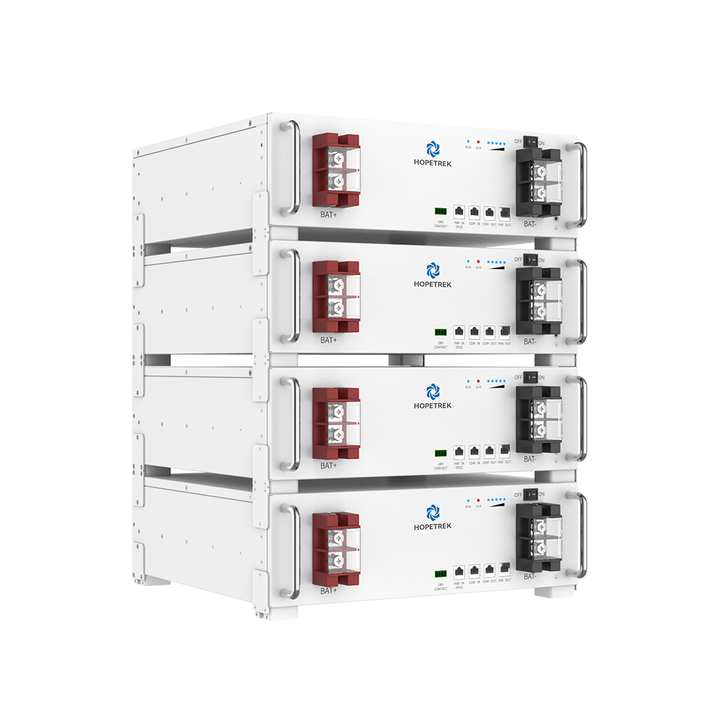

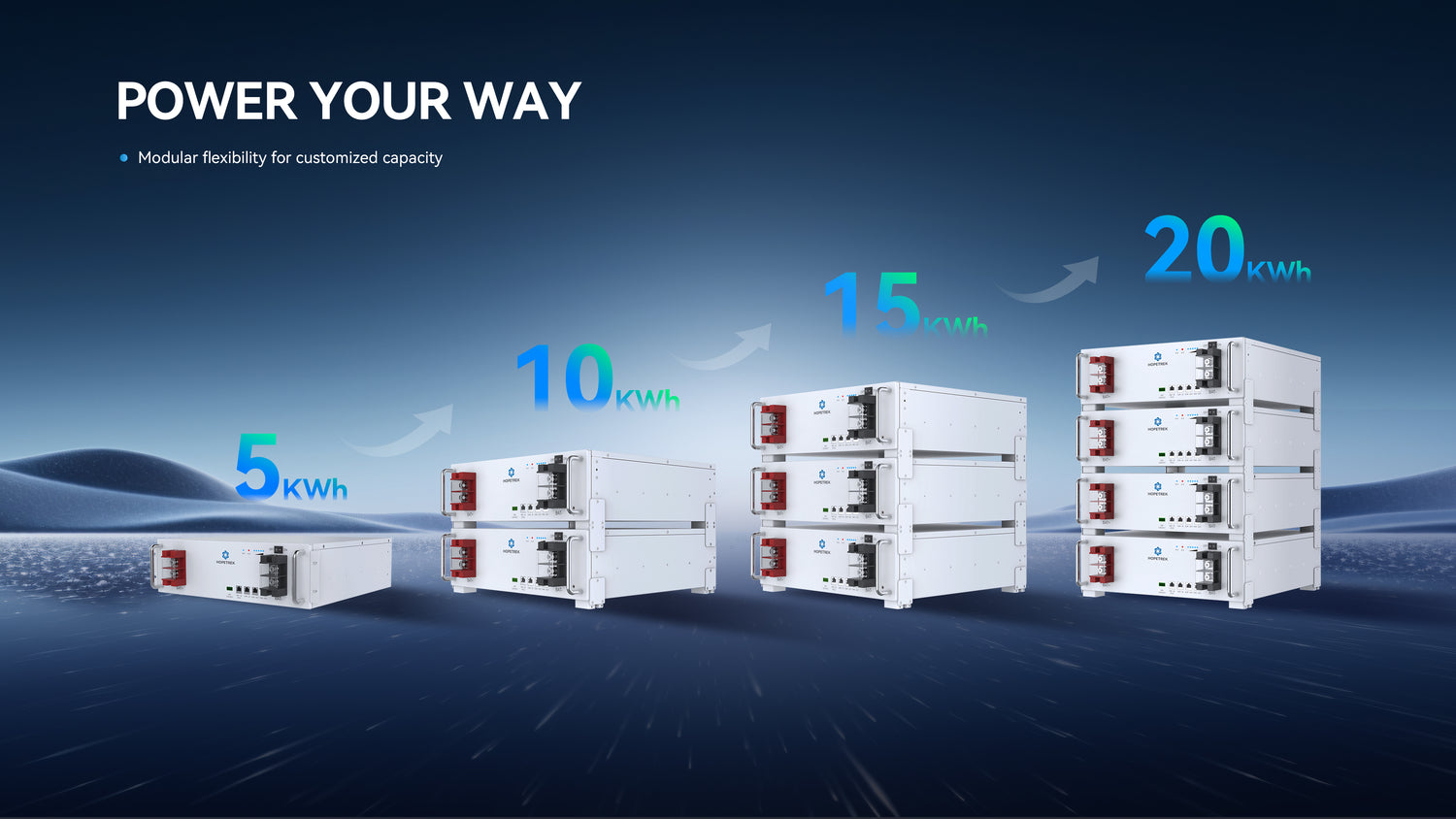

The LB5-R01 series is a low-voltage battery system tailored for residential energy storage. It features a standard 19-inch modular design for easy installation and maintenance. Equipped with 100Ah LFP battery cells, it offers a cycle life of over 6,000 cycles and a capacity of 5.12kWh per pack. The system supports up to 16 packs in parallel, providing a scalable solution for capacity requirements ranging from 5kWh to 80kWh.
LB5-R01 Series Low-Voltage Battery
$0.00
SPEC
| Specification | Description |
| Battery Unit Model | ESS-LB5-R01 |
| Cell Type | LFP (LiFePO4) -- 100Ah |
| Rated Energy | 5.12kWh |
| Max Charge/Discharge Current | 150A/150A |
| Cycle Life | ≥6000 (25±2°C, 0.5C/0.5C, 70%EOL) |

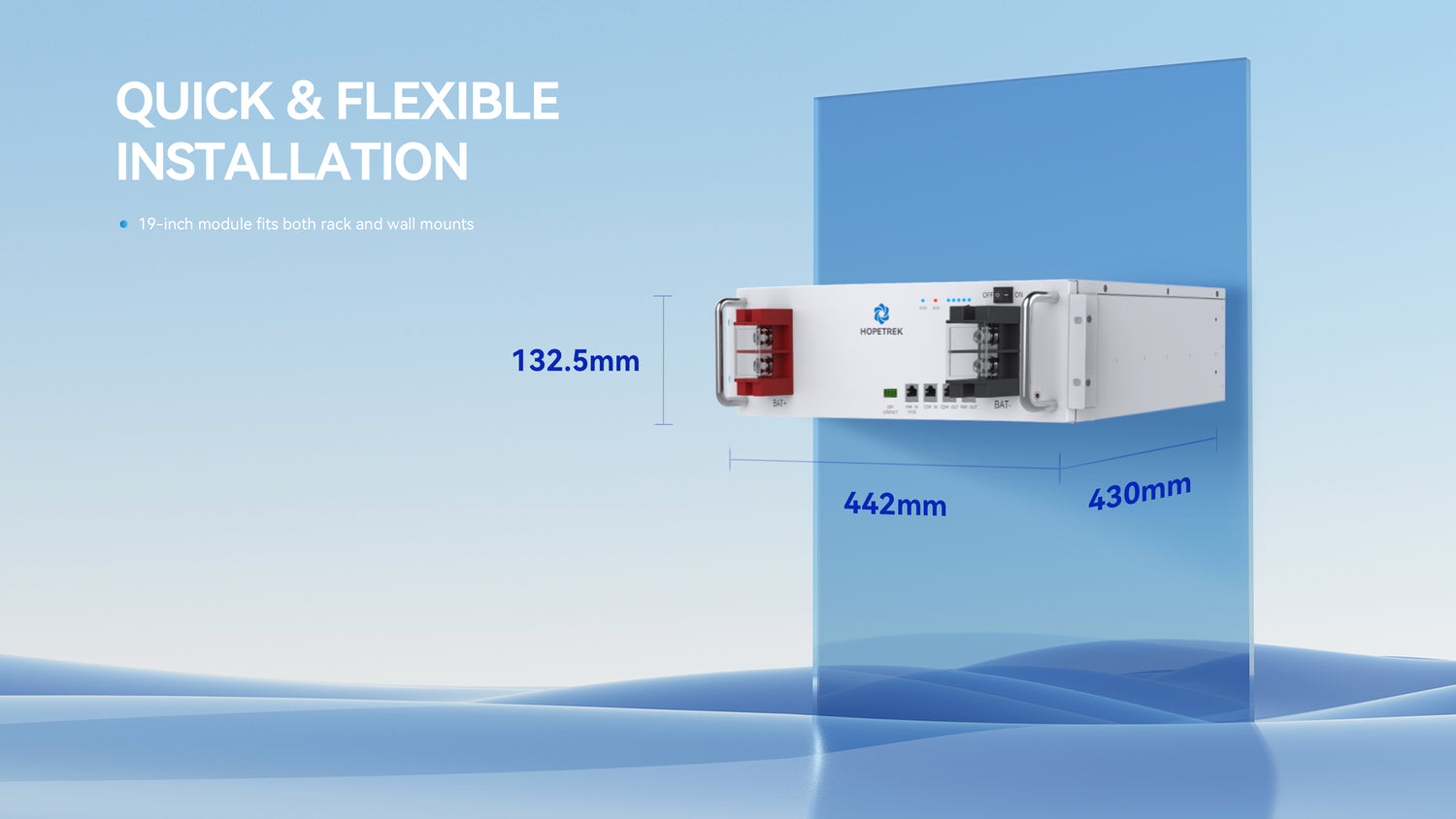

| Battery Unit Dimensions | 442×132.5×430mm |
| Battery Unit Weight | 44kg |
| Certificates | UN38.3, IEC62619, CE, VDE2510-50, CEI 0-21 |
| Ingress Protection | IP20 |
